Hot tub control board dead, error codes, or automation not working? Poolburg repairs spa circuit boards, topside panels, WiFi & smart controls across DFW. Same-day service.
Your spa’s control system is its brain. The circuit board processes commands from the topside panel, monitors every sensor, controls the heater and pumps, and keeps your spa running safely. When the control system fails, nothing works, or worse, things work incorrectly and create safety risks.
Poolburg specializes in hot tub circuit board and automation repair across Dallas-Fort Worth. From dead displays to fried boards to smart system connectivity problems, we diagnose and repair spa control systems with precision. Same-day service available.
Modern spa control systems are sophisticated electronics. They manage multiple voltage systems, 240V for heaters and pumps, 12V or 5V for sensors and displays. They communicate with topside panels through proprietary data protocols. They run safety checks constantly, monitoring flow, temperature, and electrical conditions hundreds of times per second.
When something goes wrong, the symptoms can be confusing. A blank display might be a failed panel, a blown fuse, a dead transformer, or a fried main board. Error codes might point to a specific sensor, or they might mean the board itself can’t read its own inputs correctly. Intermittent problems might be a loose connection, a failing relay, or a circuit board crack that opens and closes with temperature changes.
We have the training and diagnostic tools to trace these problems to their source. We don’t guess. We test. And we repair or replace only what’s actually broken.
You walk up to your spa and the display is dark. No lights, no response to button presses, nothing. The spa might still have power, pumps might even run, but the control panel is unresponsive.
Common Causes:
Blown fuse on the control board — The most common and simplest fix. A small glass fuse protects the low-voltage circuit that powers the display.
Failed transformer — The transformer converts 120V or 240V down to low voltage for the control circuit. If it fails, the board gets no low-voltage power.
Bad topside panel — The display unit itself has failed. Moisture intrusion, physical damage, or age.
Failed main control board — The board isn’t sending power or data to the topside panel.
Loose or corroded connection — The cable between the topside panel and the main board is loose, corroded, or damaged.
No incoming power — The spa isn’t receiving power at all. Tripped breaker, bad GFCI, wiring issue.
What We Do:
We check incoming power first. Then we test fuses on the control board. Then we verify the transformer is outputting correct low voltage. Then we test the topside panel and its connection cable. We find where the power or signal stops and fix that specific issue — not just swap parts until something works.
The main circuit board is the heart of your spa’s electrical system. When it fails, the spa either stops working entirely or behaves erratically.
Symptoms of Board Failure:
Spa completely dead despite incoming power
Multiple components not working simultaneously
Heater runs constantly and won’t shut off (stuck relay)
Pumps turn on and off randomly
Display shows garbled or nonsensical information
Burn marks, melted components, or burnt smell from the board
Spa worked before a power surge or storm and doesn’t now
Repeated component failures (board is sending incorrect voltages)
What We Do:
We perform a thorough visual inspection of the board, burned traces, bulging capacitors, cracked solder joints, and corroded connections are all visible signs of failure. We test voltage inputs and outputs. We check relay function. We determine if the board can be repaired or needs replacement.
Some board failures can be repaired, replacing a relay, resoldering a cracked joint, cleaning corrosion. Others require full board replacement. We’ll give you an honest assessment.

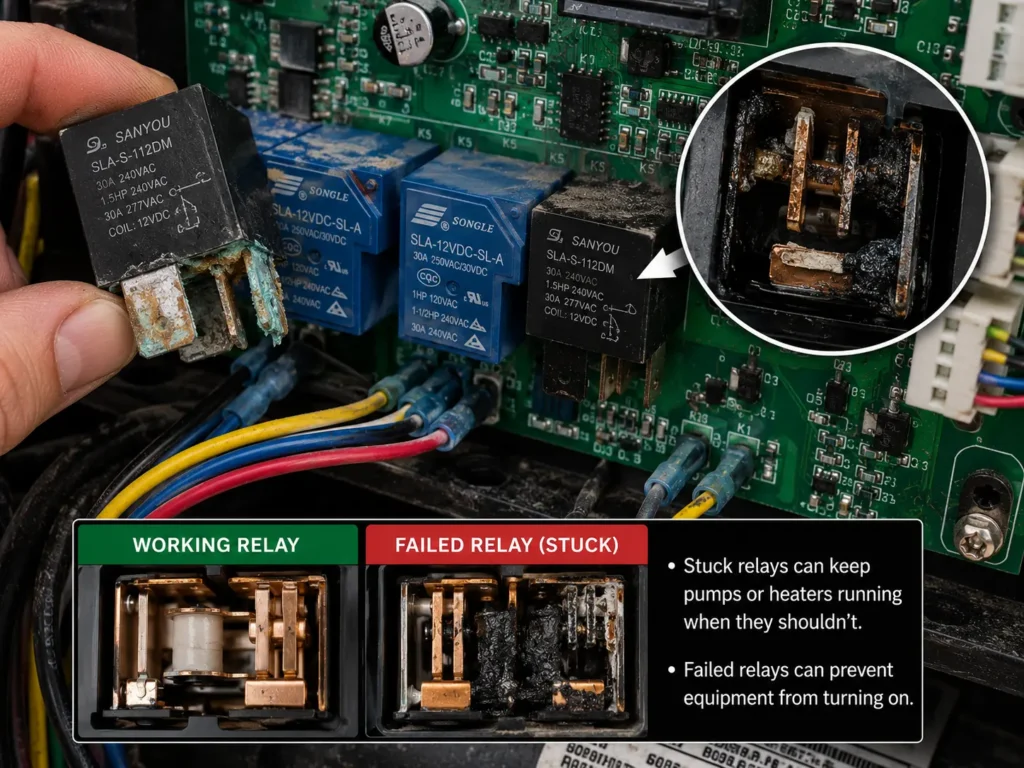

Relays are electromechanical switches on the control board that turn the heater and pumps on and off. They’re one of the most common failure points because they handle high current and have moving parts that wear out.
Symptoms of Relay Failure:
Heater won’t turn on despite board calling for heat
Heater stays on constantly and overheats the spa (dangerous)
Pump doesn’t run when activated from the panel
Pump runs continuously and won’t shut off
Clicking sound but component doesn’t activate
No click at all when component should activate
Burned or pitted relay contacts visible on the board
What We Do:
We test relay function, does the relay click when activated? Does power flow through the relay contacts when closed? A relay that clicks but doesn’t pass power has burned contacts. A relay that passes power without being activated has welded contacts and is dangerously stuck on. Depending on the board design, we may be able to replace individual relays or the entire board may need replacement.
Safety Note: A stuck heater relay is a serious safety hazard. If your spa is overheating or the heater runs constantly, turn it off at the breaker and call us immediately.
Your spa displays an error code. You reset the breaker. The code comes back. You check the obvious things. The code persists. Something is actually wrong, and the control system is trying to tell you.
Common Persistent Error Codes:
FLO — Flow problem (may be real or a bad flow switch)
OH / OVHT — Overheat (may be real overheat or bad sensor)
Sn / SnS — Sensor fault (sensor bad or wiring issue)
Prr / Pr — Priming mode stuck (airlock or flow switch)
dr / DRY — Dry fire protection (no water in heater)
ICE — Freeze protection activated
What We Do:
We don’t just read the code, we test what the code is reporting. A FLO error might be a dirty filter, a failing pump, a bad flow switch, or a wiring issue. An OH error might be actual overheating or a failed high-limit sensor. We test the components the error is referencing and find the root cause. When we fix the cause, the error clears permanently.
The spa works fine sometimes. Other times it’s dead, or shows errors, or behaves strangely. Intermittent problems are the most frustrating to diagnose, and the most satisfying to fix.
Common Causes of Intermittent Problems:
Cracked solder joints — Temperature changes cause the board to expand and contract. A cracked solder joint makes contact when cold, loses contact when warm (or vice versa).
Loose connectors — Vibration from pumps loosens wire connections over time.
Moisture intrusion — Condensation or a small leak causes occasional shorts.
Failing capacitors — Electrolytic capacitors degrade over time and cause unstable voltage.
Damaged ribbon cables — The flat cable between topside panel and main board has a partial break.
Corrosion — Chemical fumes from the spa water corrode board components and connections.
What We Do:
Intermittent problems require patience and systematic testing. We inspect the board under magnification for cracked joints. We test connections while gently flexing components. We check for moisture and corrosion. We heat and cool suspect areas to reproduce temperature-related failures. When we find the problem, we fix it permanently, resoldering joints, replacing capacitors, cleaning corrosion, securing connections.
Sometimes the damage is obvious. A power surge, a lightning strike, a short circuit, or a component failure that cascaded through the board. You can see the damage — burned spots, melted plastic, blown components.
Common Causes:
Power surge — Grid surge or lightning strike sends excessive voltage through the board.
Short circuit — Failed pump or heater creates a dead short that damages the board.
Component cascade — One component fails and takes others with it.
Water damage — A leak or flood submerges the board.
Rodent damage — Mice or rats chew wiring and cause shorts.
What We Do:
We assess the extent of the damage. Minor burns from a relay failure may be repairable. Widespread damage from a lightning strike usually requires board replacement. We also check what caused the damage, replacing a board without fixing the cause means the new board fails too.
When the topside panel fails, cracked overlay, unresponsive buttons, moisture inside the display, it usually needs replacement rather than repair.
Symptoms of Topside Failure:
Display shows partial or garbled information
Some buttons work, others don’t
Moisture visible inside the display window
Overlay cracked, peeling, or bubbled
Panel works intermittently when pressed in a certain spot
Display brightness very dim or flickering
What We Do:
We verify the topside panel is the problem (not the main board or cable). We source the correct replacement panel for your spa model. We install it, seal it properly against moisture, and test full functionality.
Your spa won’t connect to your phone. The app can’t find the spa. Connection drops constantly.
Common Causes:
WiFi module failed — The module inside the spa has lost power or malfunctioned.
Network changed — New router, new WiFi password, or network settings changed.
Module needs reset — Many WiFi modules need a hard reset and re-pairing after a power loss.
Signal range issues — Spa is too far from the router or there’s new interference.
App outdated — Manufacturer app needs updating.
Server issues — Manufacturer’s cloud service is temporarily down (rare but happens).
What We Do:
We check the WiFi module power and status lights. We walk through the pairing process. We test signal strength at the spa location. We verify the module is communicating with the control board. If the module has failed, we replace it with the correct unit for your spa.
Spas with integrated automation, geofencing that heats the spa as you drive home, scheduling that runs filtration during off-peak electricity hours, alerts when water chemistry needs attention, depend on proper communication between the control board, WiFi module, and cloud services.
Symptoms of Automation Problems:
Schedules not executing
Remote temperature changes not taking effect
Notifications not sending
Automation features grayed out in the app
System reverts to manual mode
What We Do:
We verify firmware versions, check communication between the control board and WiFi module, and ensure all settings are configured correctly. Sometimes the fix is a software update. Sometimes it’s a hardware issue with the communication module.
What's the spa doing? What's it not doing? Error codes? Intermittent or constant? Did anything happen before the problem started — power outage, storm, drained and refilled?
We open the equipment bay and inspect the control board. Burn marks, corrosion, loose connections, rodent damage, moisture, many problems are visible once you know what to look for.
We test incoming power at the terminal block. Correct voltage? Both legs present? GFCI functioning? No power means a breaker or wiring problem, not a board problem.
We test the transformer output. We check fuses. We verify the board is receiving the low-voltage power it needs to operate.
We test relays, sensors, and outputs. We verify the board is sending correct signals and components are responding.
For topside or connectivity issues, we test the data path between panel and board, or board and WiFi module.
We tell you what's wrong, what needs to be repaired or replaced, and what it costs. If repair is possible, we explain how. If replacement is needed, we explain why.
We complete the repair, clear all error codes, and run the spa through full operation cycles. Everything works before we leave.
Control board diagnosis requires electronic knowledge beyond standard spa repair. Our technicians are trained for board-level troubleshooting.
We can replace individual relays, capacitors, and fuses, not just swap entire boards. This saves you money when board repair is viable.
Repairs meet manufacturer standards for all major brands
We repair all major portable hot tub brands. If you don't see yours listed, call us, we likely service it.
The most common cause is a blown fuse on the control board. There’s typically a small glass fuse that protects the low-voltage circuit powering the display. Check this first. If the fuse is good, the problem could be a failed transformer, a bad topside panel, a damaged connection cable, or the main control board itself. We can diagnose which it is quickly.
It depends on the extent of the damage. A board with a single failed relay or a small burned trace can often be repaired. A board that’s been hit by lightning or submerged in water usually needs replacement. We’ll give you an honest assessment after inspecting the board. If repair is viable, we do it. If not, we tell you why replacement is the right call.
Intermittent problems are usually caused by something that changes — temperature, vibration, or moisture. Common culprits include cracked solder joints that make and break contact as the board heats and cools, loose wire connections that vibrate when pumps run, or moisture that causes occasional shorts. These are hard to diagnose without professional tools and experience. We find and fix intermittent problems permanently.
Power outages often cause voltage spikes when power is restored. These spikes can damage sensitive spa electronics. Even if the spa was off during the outage, the surge when power returns can blow fuses, damage relays, or fry circuit board components. A spa-specific surge protector is the best prevention.
Yes, in many cases. There are aftermarket WiFi modules that work with a wide range of control systems. We can assess your spa’s compatibility and install a module that gives you app-based temperature control, scheduling, and monitoring. It’s a popular upgrade that adds modern convenience to older spas.
Probably. A heater that runs continuously usually means a stuck relay on the control board. The relay contacts have welded together, so power flows to the heater regardless of what the thermostat says. This is a serious safety issue — the spa can overheat to dangerous temperatures. Turn the spa off at the breaker and call us immediately. Do not use the spa until this is repaired
In good conditions, clean, dry equipment bay, good water chemistry, surge protection, a control board can last 10 to 15 years or more. In harsh conditions, moisture, chemical fumes, frequent surges, boards can fail in 5 to 7 years. Regular maintenance and keeping the equipment bay dry extend board life significantly.
It varies widely. A simple fuse replacement is minimal. A relay repair on the board is moderate. A full control board replacement with a new unit is more significant. We give you a clear quote after diagnosis so you can make an informed decision. We’ll always tell you if repair is a better value than replacement.
